Overview
Specify CFE-17525-R963 when requesting this multiple-output power supply from the CFE-17525 series. The electrical selection is 5 V / 3 A; 12 V / 1 A; -5 V / 0.5 A; 29.5 W. Input requirement: 85–132 / 180–264 VAC / 254–370 VDC. Supply frequency: 47–63 Hz. Housing: ventilated metal enclosure. The documented cooling method is fanless. Listed body dimensions: 129 × 98 × 38 mm; axis order follows the technical document. Check the channel combination and mechanical fit before preparing the order specification.
Core specification
Part numberCFE-17525-R963
ManufacturerChipFasteners
Series / designationCFE-17525
CategoryPower Supplies & Converters
SubcategoryCFE-17525
AvailabilityAvailability on request
LifecycleInformation on request.
PackageInformation on request.
Lead timeConfirmed in quotation
Technical parameters
Output channels
5 V + 12 V + -5 V / 3 A / 1 A / 0.5 A
Rated output power
29.5 W
Input voltage
85–132 / 180–264 VAC / 254–370 VDC
Input frequency
47–63 Hz
Dimensions, document order
129 × 98 × 38 mm
Dc voltage
CH1: 5 V / CH2: 12 V / CH3: -5 V
Rated current
CH1: 3 A / CH2: 1 A / CH3: 0.5 A
Rated power
29.5 W
Voltage range
85–132 / 180–264 VAC / 254–370 VDC

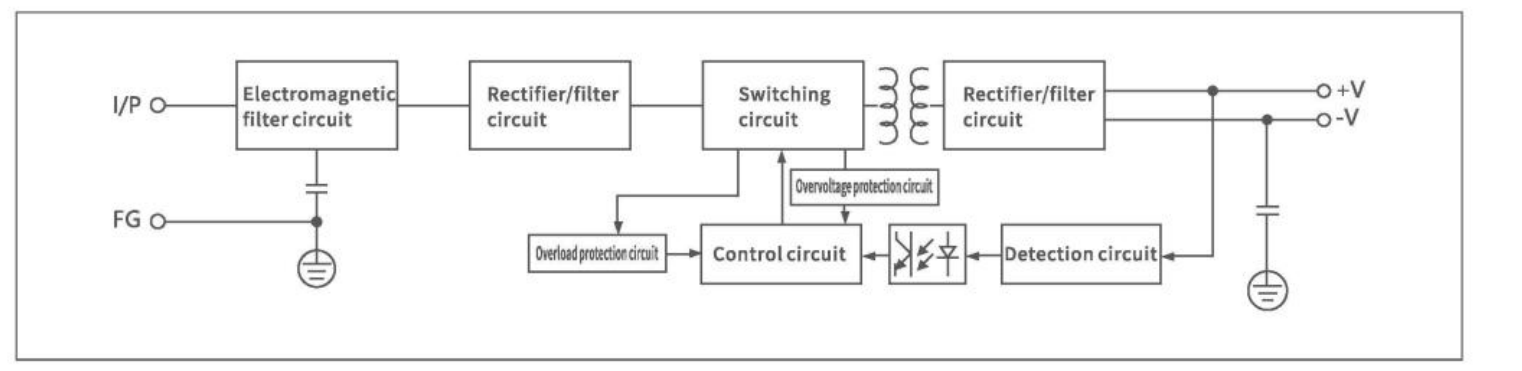

Technical drawings and circuit diagrams
Original excerpts from the technical document. A series diagram may apply to more than one listed variant.
Sourcing Notes
- Use the exact manufacturer part number for RFQ and cross-reference review.
- Review the listed technical parameters before approving any substitution.
- No datasheet is listed on this page, so validate fit against the exact MPN before ordering.
