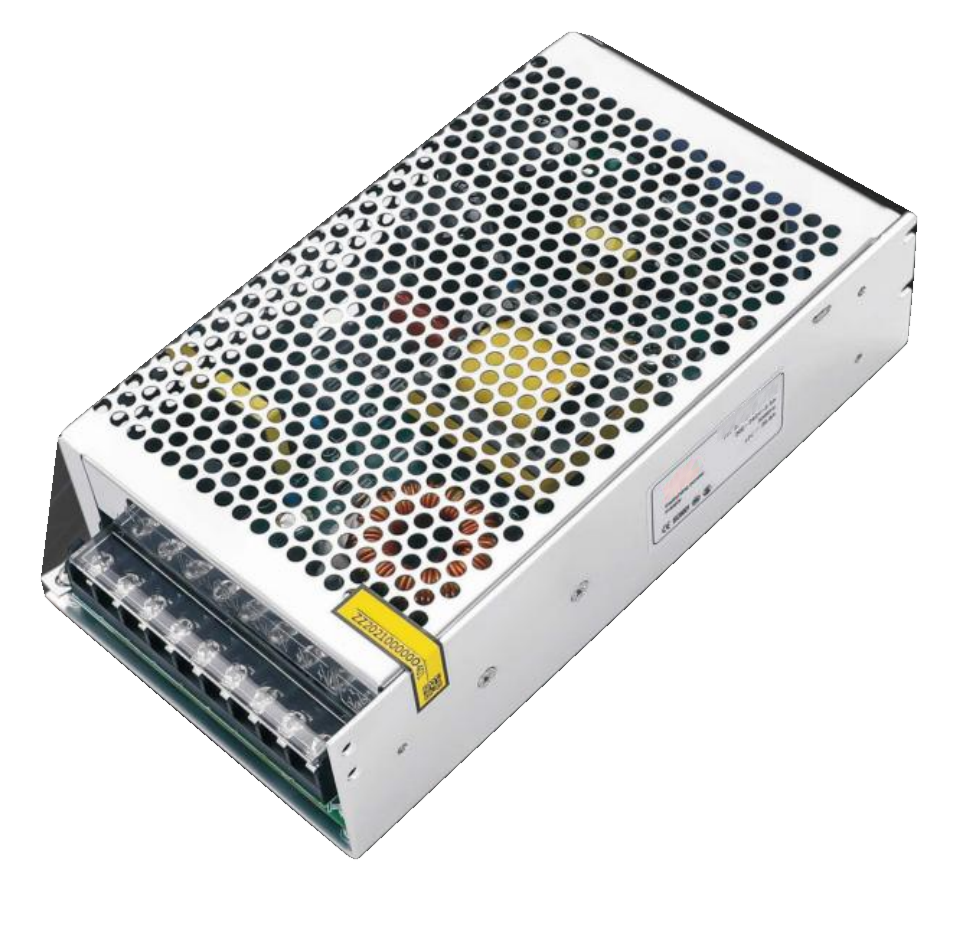

Source photograph of the CFE-24823 enclosure. Variant ratings are listed in the specification table.
Overview
Specify CFE-24823-R889 when requesting this enclosed AC/DC power supply from the CFE-24823 series. The electrical selection is 5 V / 40 A; 200 W. Input requirement: 185–264 VAC / 240–370 VDC. Supply frequency: 47–63 Hz. Housing: ventilated metal enclosure. The documented cooling method is fanless. Listed body dimensions: 199 × 110 × 50 mm; axis order follows the technical document. Check the channel combination and mechanical fit before preparing the order specification.
Core specification
Part numberCFE-24823-R889
ManufacturerChipFasteners
Series / designationCFE-24823
CategoryPower Supplies & Converters
SubcategoryCFE-24823
AvailabilityAvailability on request
LifecycleInformation on request.
PackageInformation on request.
Lead timeConfirmed in quotation
Technical parameters
Output channels
5 V / 40 A
Rated output power
200 W
Input voltage
185–264 VAC / 240–370 VDC
Input frequency
47–63 Hz
Dimensions, document order
199 × 110 × 50 mm
DC voltage
5 V
Rated current
40 A
Rated power
200 W

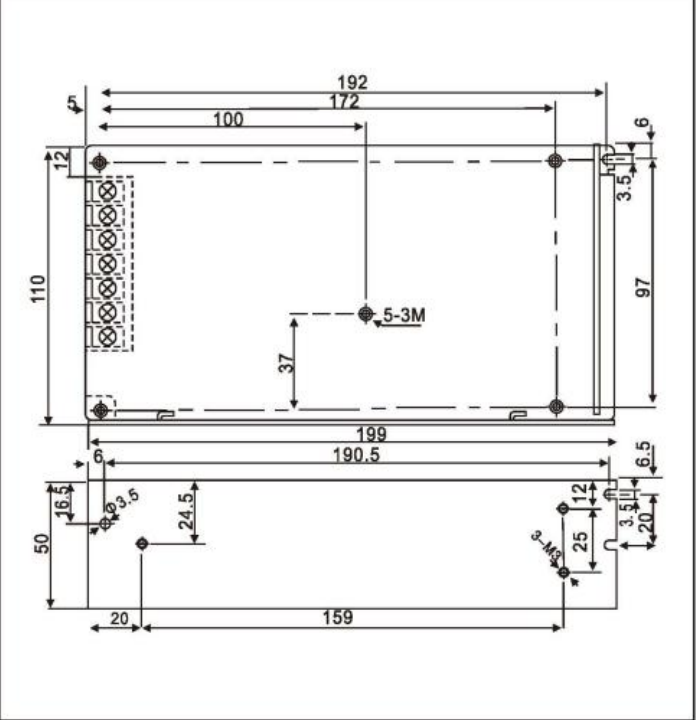

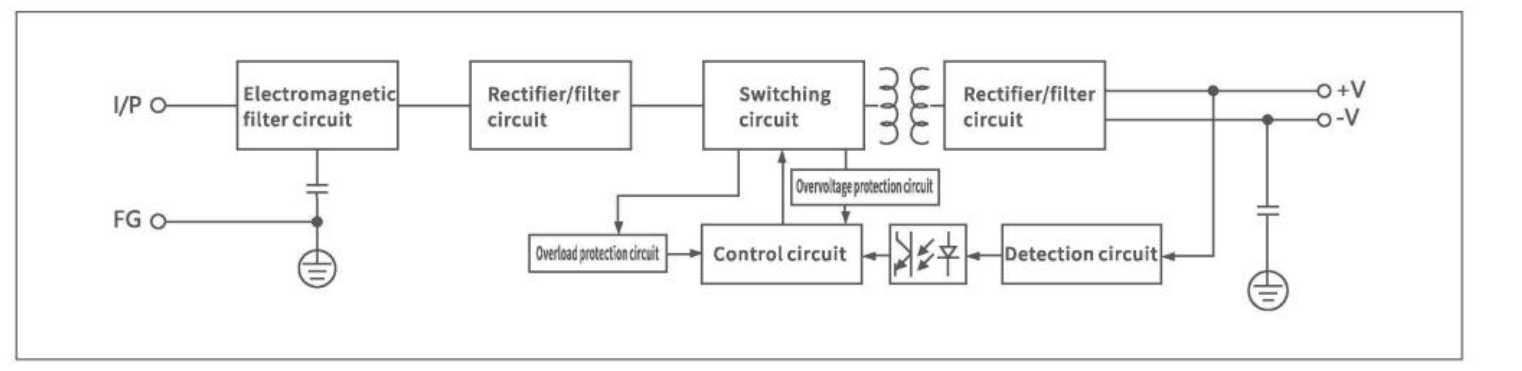

Technical drawings and circuit diagrams
Original excerpts from the technical document. A series diagram may apply to more than one listed variant.
Sourcing Notes
- Use the exact manufacturer part number for RFQ and cross-reference review.
- Review the listed technical parameters before approving any substitution.
- No datasheet is listed on this page, so validate fit against the exact MPN before ordering.
