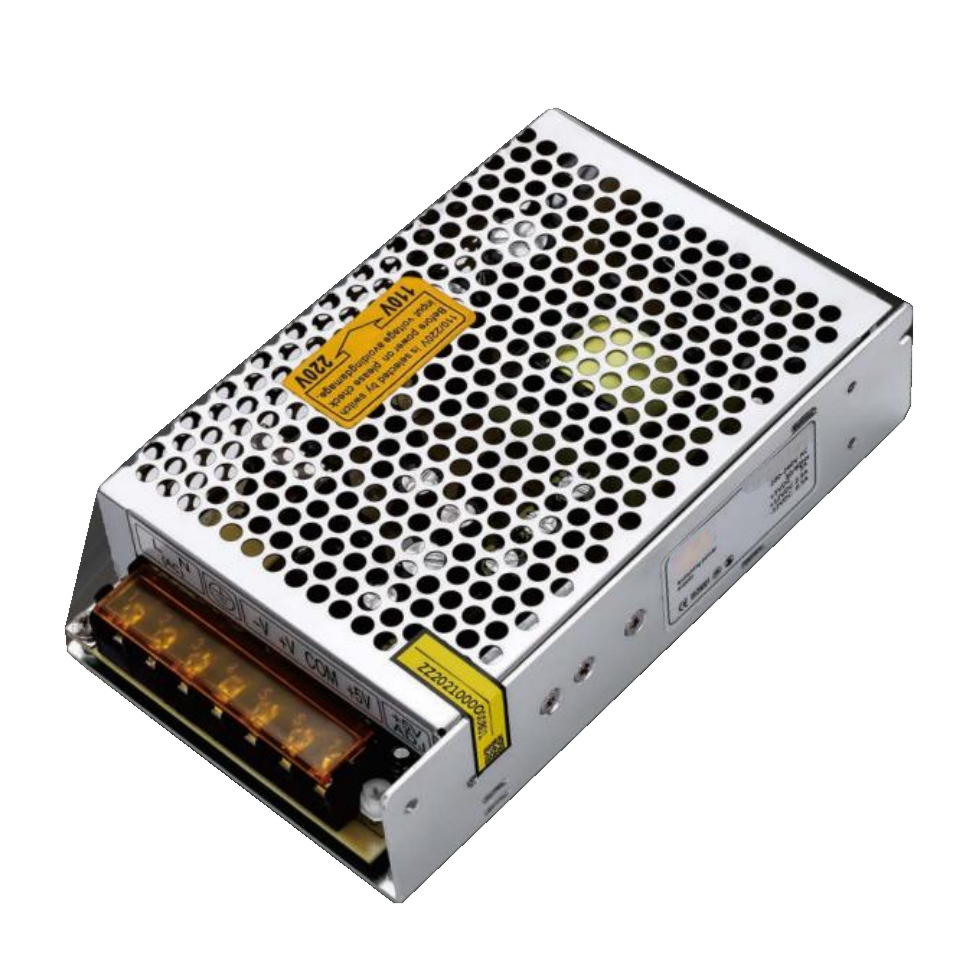

Source photograph of the CFE-32321 enclosure. Variant ratings are listed in the specification table.
Overview
Specify CFE-32321-R928 when requesting this multiple-output power supply from the CFE-32321 series. The electrical selection is 5 V / 12 A; 12 V / 4.5 A; -5 V / 1 A; 119 W. Input requirement: 85–132 / 180–264 VAC / 254–370 VDC. Supply frequency: 47–63 Hz. Housing: ventilated metal enclosure. The documented cooling method is fanless. Listed body dimensions: 199 × 110 × 50 mm; axis order follows the technical document. Check the channel combination and mechanical fit before preparing the order specification.
Core specification
Part numberCFE-32321-R928
ManufacturerChipFasteners
Series / designationCFE-32321
CategoryPower Supplies & Converters
SubcategoryCFE-32321
AvailabilityAvailability on request
LifecycleInformation on request.
PackageInformation on request.
Lead timeConfirmed in quotation
Technical parameters
Output channels
5 V + 12 V + -5 V / 12 A / 4.5 A / 1 A
Rated output power
119 W
Input voltage
85–132 / 180–264 VAC / 254–370 VDC
Input frequency
47–63 Hz
Dimensions, document order
199 × 110 × 50 mm
Dc voltage
CH1: 5 V / CH2: 12 V / CH3: -5 V
Rated current
CH1: 12 A / CH2: 4.5 A / CH3: 1 A
Rated power
119 W
Voltage range
85–132 / 180–264 VAC / 254–370 VDC

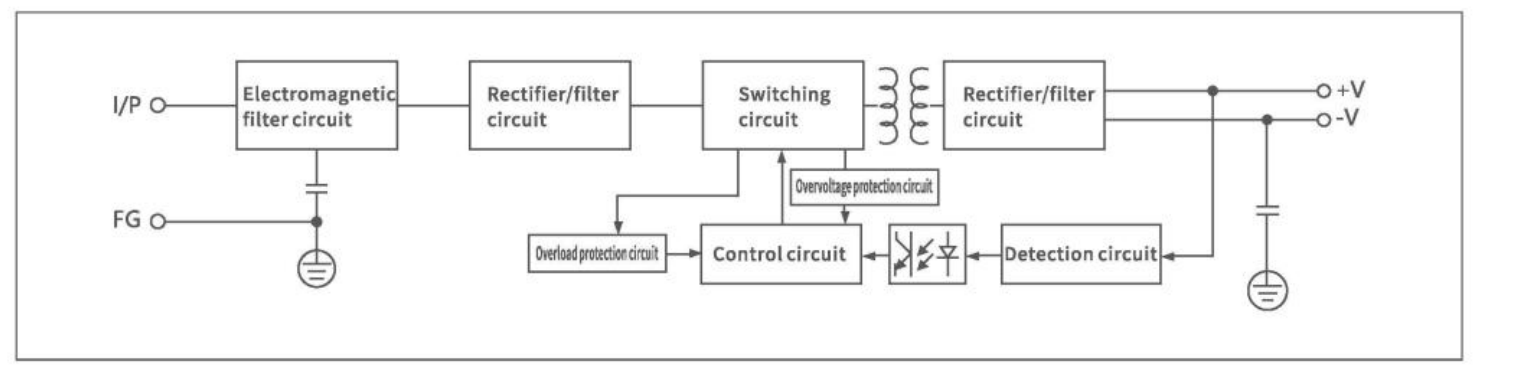

Technical drawings and circuit diagrams
Original excerpts from the technical document. A series diagram may apply to more than one listed variant.
Sourcing Notes
- Use the exact manufacturer part number for RFQ and cross-reference review.
- Review the listed technical parameters before approving any substitution.
- No datasheet is listed on this page, so validate fit against the exact MPN before ordering.
