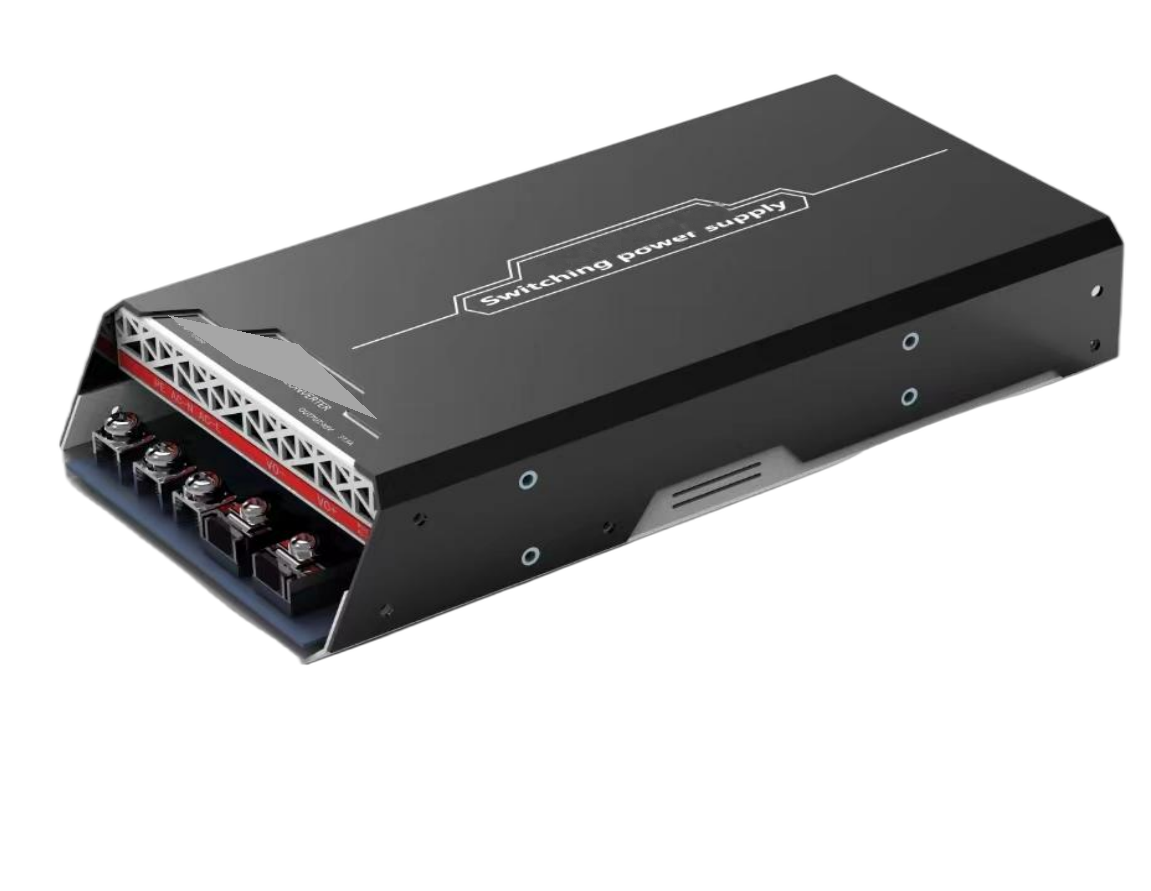

Source photograph of the CFE-51303 enclosure. Variant ratings are listed in the specification table.
Overview
Specify CFE-51303-R712 when requesting this enclosed AC/DC power supply from the CFE-51303 series. The electrical selection is 440 V / 4.5 A; 2000 W; at 180–264 VAC input. Input requirement: 180–265 VAC. Supply frequency: 45–65 Hz. Housing: ventilated metal enclosure. Fan cooling is specified in the family overview. Listed body dimensions: 210 × 108 × 44 mm; axis order follows the technical document. Check the channel combination and mechanical fit before preparing the order specification. Printed power applies at 180–264 VAC input.
Core specification
Part numberCFE-51303-R712
ManufacturerChipFasteners
Series / designationCFE-51303
CategoryPower Supplies & Converters
SubcategoryCFE-51303
AvailabilityAvailability on request
LifecycleInformation on request.
PackageInformation on request.
Lead timeConfirmed in quotation
Technical parameters
Output channels
440 V / 4.5 A
Rated output power
2000 W
Input voltage
180–265 VAC
Input frequency
45–65 Hz
Dimensions, document order
210 × 108 × 44 mm
Dc voltage
440 V
Rated current
4.5 A
Rated power
2000 W; Printed power applies at 180–264 VAC input.
Rating conditions
Printed power applies at 180–264 VAC input.

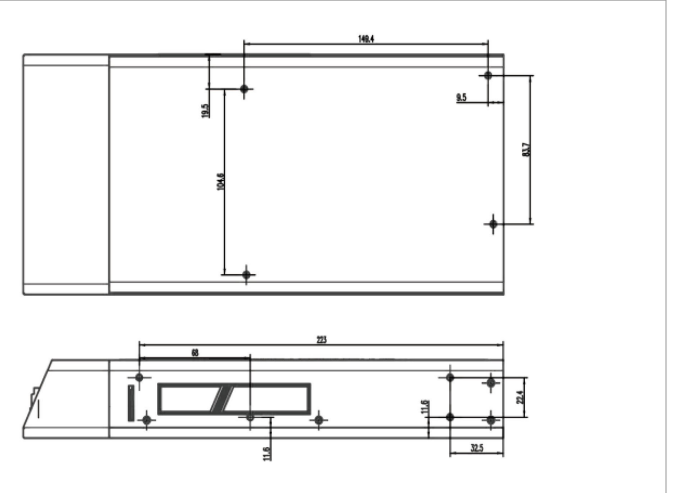

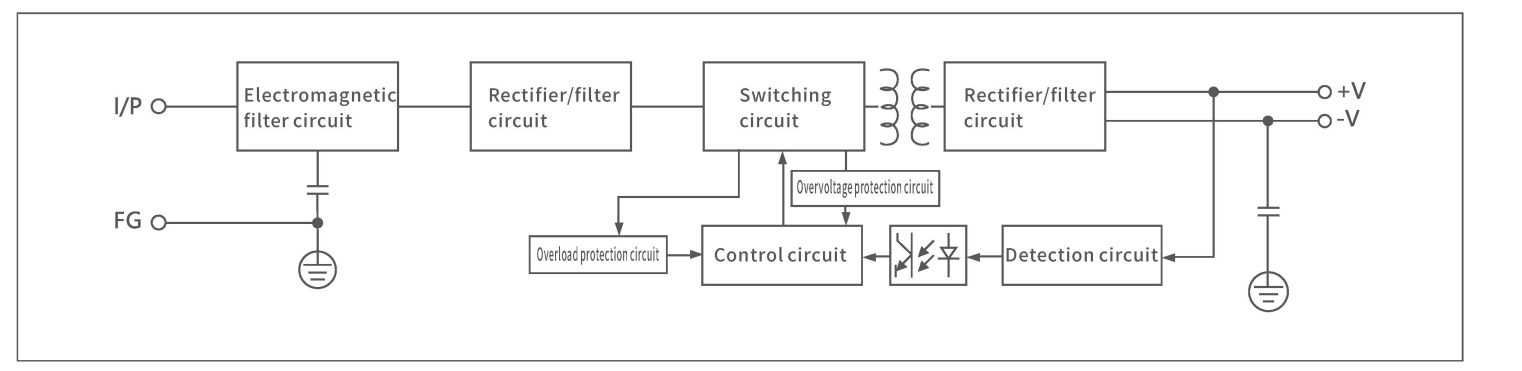

Technical drawings and circuit diagrams
Original excerpts from the technical document. A series diagram may apply to more than one listed variant.
Sourcing Notes
- Use the exact manufacturer part number for RFQ and cross-reference review.
- Review the listed technical parameters before approving any substitution.
- No datasheet is listed on this page, so validate fit against the exact MPN before ordering.
