CFE-56590-R169

ChipFasteners · Power Supplies & Converters / CFE-56590

Availability on request Availability on request Confirmed in quotation Price on request
ChipFasteners CFE-56590 enclosure

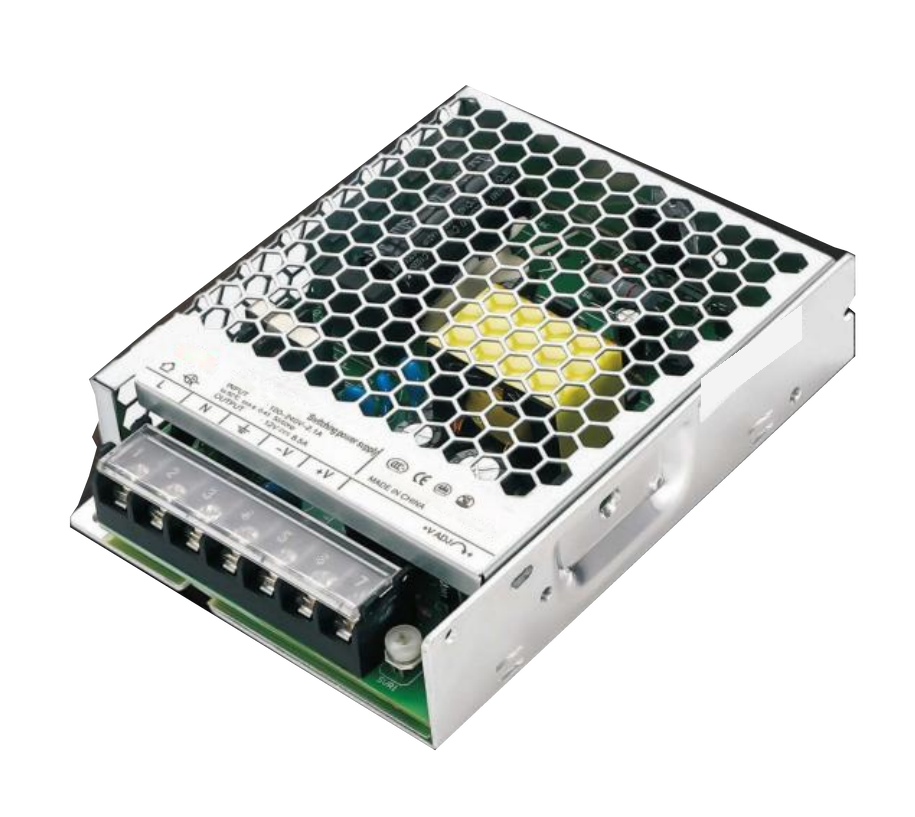

Source photograph of the CFE-56590 enclosure. Variant ratings are listed in the specification table.

Overview

Specify CFE-56590-R169 when requesting this enclosed AC/DC power supply from the CFE-56590 series. The electrical selection is 48 V / 2.3 A; 110.4 W. Input requirement: 85–264 VAC / 120–373 VDC. Supply frequency: 47–63 Hz. Housing: ventilated metal enclosure. The documented cooling method is fanless. Specification details — Ripple and noise: 200 mVp-p; Output adjustment: ±10%; Typical efficiency: 90% @ 230 VAC / 25 °C. Listed body dimensions: 129 × 97 × 30 mm; axis order follows the technical document. Check the channel combination and mechanical fit before preparing the order specification.

Core specification

Part numberCFE-56590-R169
ManufacturerChipFasteners
Series / designationCFE-56590
SubcategoryCFE-56590
AvailabilityAvailability on request
LifecycleInformation on request.
PackageInformation on request.
Lead timeConfirmed in quotation

Technical parameters

Output channels 48 V / 2.3 A
Rated output power 110.4 W
Input voltage 85–264 VAC / 120–373 VDC
Input frequency 47–63 Hz
Dimensions, document order 129 × 97 × 30 mm
DC voltage 48 V
Rated current 2.3 A
Rated power 110.4 W
Ripple and noise 200 mVp-p
Output voltage adjustment ±10%
Output voltage tolerance ±1.0%
Line regulation ±0.5%
Load regulation ±0.5%
Start / rise / hold timing as specified 500 ms / 30 ms @ 230 VAC; 500 ms / 30 ms @ 115 VAC, full load
Hold-up time 55 ms @ 230 VAC; 10 ms @ 115 VAC, full load
Typical efficiency, rated load 90% @ 230 VAC / 25 °C
Input current 1.9 A @ 115 VAC; 1.2 A @ 230 VAC
Inrush current Cold start: 50 A @ 230 VAC
Leakage current <1 mA @ 240 VAC
Short-circuit response Output shuts down when +VO reaches the undervoltage point
Operating temperature / humidity −30…+70 °C; 20–90% RH
Storage temperature / humidity −40…+85 °C; 10–95% RH
Dielectric withstand Input–output: 4 kVAC; input–case: 2 kVAC; output–case: 1.25 kVAC; 1 minute
Net / gross mass 340 / 365 g
Ripple measurement conditions 20 MHz bandwidth; 0.1 µF and 47 µF capacitors in parallel at the output terminals

Technical drawings and circuit diagrams

Original excerpts from the technical document. A series diagram may apply to more than one listed variant.

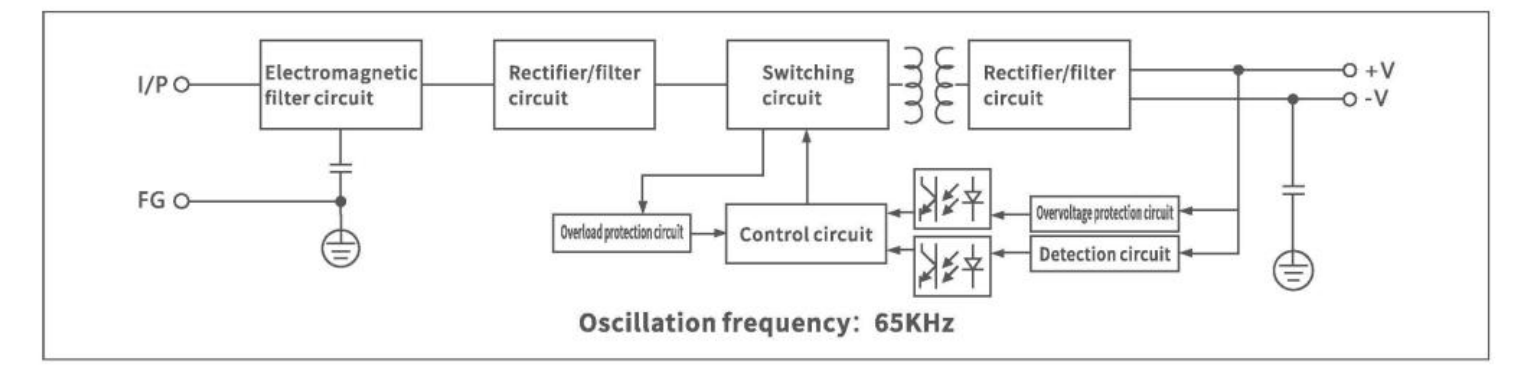

CFE-56590 — Functional block diagram
CFE-56590 — Functional block diagram

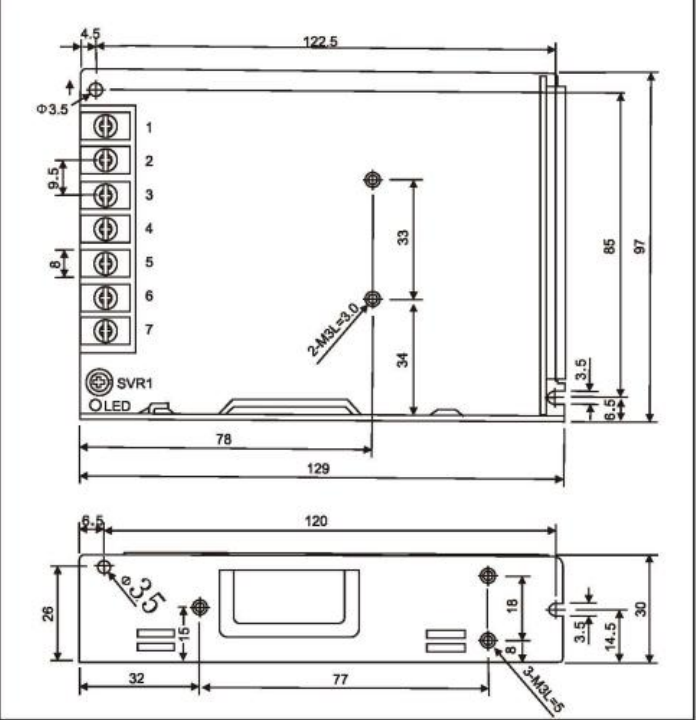

CFE-56590 — Mechanical drawing
CFE-56590 — Mechanical drawing

Sourcing Notes

  • Use the exact manufacturer part number for RFQ and cross-reference review.
  • Review the listed technical parameters before approving any substitution.
  • No datasheet is listed on this page, so validate fit against the exact MPN before ordering.
