Product page

CFE-57432-R394

ChipFasteners · Power Supplies & Converters / CFE-57432

Availability on request Availability on request Confirmed in quotation Price on request
ChipFasteners CFE-57432 enclosure

Source photograph of the CFE-57432 enclosure. Variant ratings are listed in the specification table.

Overview

Specify CFE-57432-R394 when requesting this LED power supply from the CFE-57432 series. The electrical selection is 15 V / 1.33 A; 20 W. Input requirement: 90–264 VAC / 127–370 VDC. Supply frequency: 47–63 Hz. Construction: potted power supply. The family overview specifies fanless cooling. Confirm any required ingress-protection rating separately against the configuration data. Listed body dimensions: 222 × 30 × 20 mm; axis order follows the technical document. Check the channel combination and mechanical fit before preparing the order specification.

Core specification

Part numberCFE-57432-R394
ManufacturerChipFasteners
Series / designationCFE-57432
SubcategoryCFE-57432
AvailabilityAvailability on request
LifecycleInformation on request.
PackageInformation on request.
Lead timeConfirmed in quotation

Technical parameters

Output channels 15 V / 1.33 A
Rated output power 20 W
Input voltage 90–264 VAC / 127–370 VDC
Input frequency 47–63 Hz
Dimensions, document order 222 × 30 × 20 mm
Dc voltage 15 V

Technical drawings and circuit diagrams

Original excerpts from the technical document. A series diagram may apply to more than one listed variant.

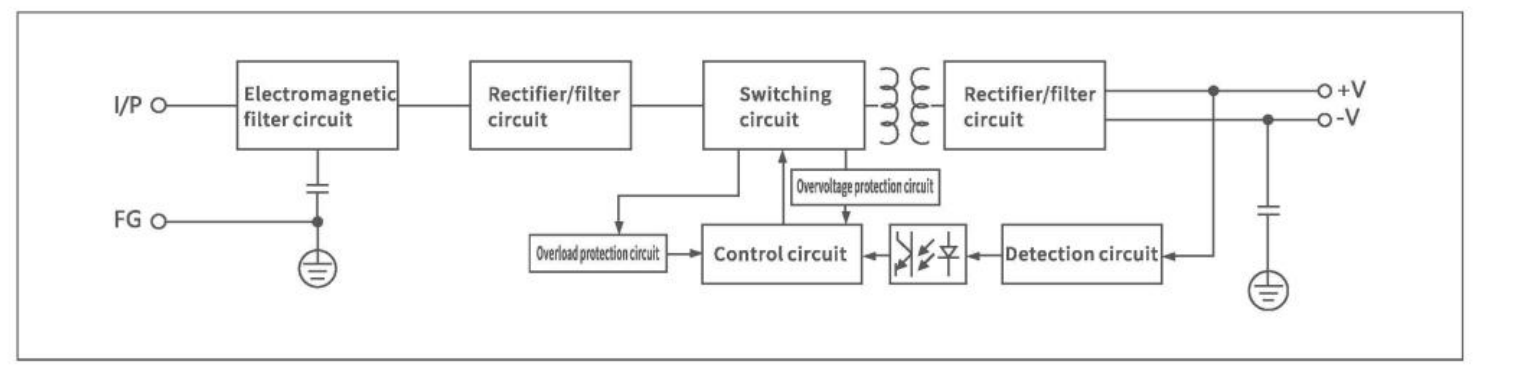

CFE-57432 — Functional block diagram
CFE-57432 — Functional block diagram

Sourcing Notes

  • Use the exact manufacturer part number for RFQ and cross-reference review.
  • Review the listed technical parameters before approving any substitution.
  • No datasheet is listed on this page, so validate fit against the exact MPN before ordering.
