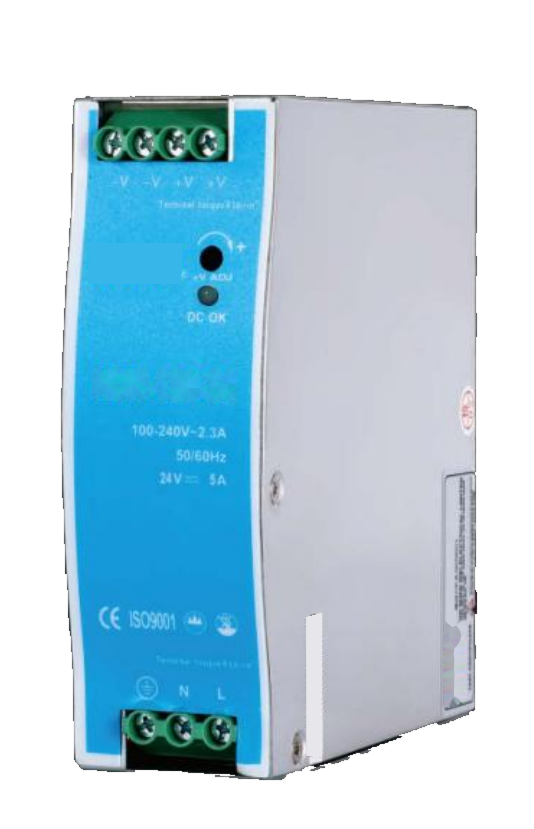

Source photograph of the CFE-58694 enclosure. Variant ratings are listed in the specification table.
Overview
Specify CFE-58694-R184 when requesting this DIN rail power supply from the CFE-58694 series. The electrical selection is 48 V / 2.5 A; 120 W. Input requirement: 85–264 VAC / 120–370 VDC; DC: AC/L(+), AC/N(−). Supply frequency: 47–63 Hz. Housing: ventilated metal enclosure. The documented cooling method is fanless. Listed body dimensions: 40 × 125 × 113 mm; axis order follows the technical document. Check the channel combination and mechanical fit before preparing the order specification.
Core specification
Part numberCFE-58694-R184
ManufacturerChipFasteners
Series / designationCFE-58694
CategoryPower Supplies & Converters
SubcategoryCFE-58694
AvailabilityAvailability on request
LifecycleInformation on request.
PackageInformation on request.
Lead timeConfirmed in quotation
Technical parameters
Output channels
48 V / 2.5 A
Rated output power
120 W
Input voltage
85–264 VAC / 120–370 VDC; DC: AC/L(+), AC/N(−)
Input frequency
47–63 Hz
Dimensions, document order
40 × 125 × 113 mm
DC voltage
48 V
Rated current
2.5 A
Rated power
120 W
Voltage range
85–264 VAC / 120–370 VDC; DC: AC/L(+), AC/N(−)

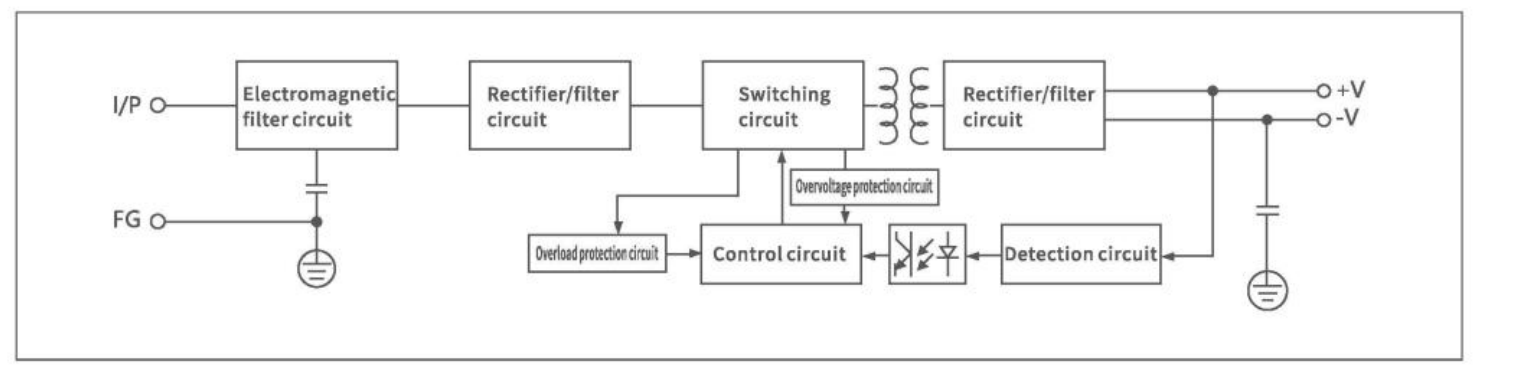

Technical drawings and circuit diagrams
Original excerpts from the technical document. A series diagram may apply to more than one listed variant.
Sourcing Notes
- Use the exact manufacturer part number for RFQ and cross-reference review.
- Review the listed technical parameters before approving any substitution.
- No datasheet is listed on this page, so validate fit against the exact MPN before ordering.
