Original photograph of the CFE-62806 series enclosure. Variant ratings are listed separately.
Overview
Variant CFE-62806-R472 in the CFE-62806 series is rated for 30 W, with a 5 V DC output and 6 A nominal current. Electrical integration requirements: 85–264 VAC / 120–370 VDC input, 47–63 Hz line frequency and 40 × 90 × 100 mm enclosure dimensions. Compare the selected rating with the load and available mounting space.
Core specification
Part numberCFE-62806-R472
ManufacturerChipFasteners
Series / designationCFE-62806
CategoryPower Supplies & Converters
SubcategoryCFE-62806
AvailabilityAvailability on request
LifecycleInformation on request.
PackageInformation on request.
Lead timeConfirmed in quotation
Technical parameters
Output voltage
5 V DC
Nominal output current
6 A
Output power rating
30 W
Supply input
85–264 VAC / 120–370 VDC
Line frequency
47–63 Hz
Body dimensions
40 × 90 × 100 mm
Operating temperature
−20…+70 °C
Operating relative humidity
20–90%
Storage temperature
−40…+85 °C

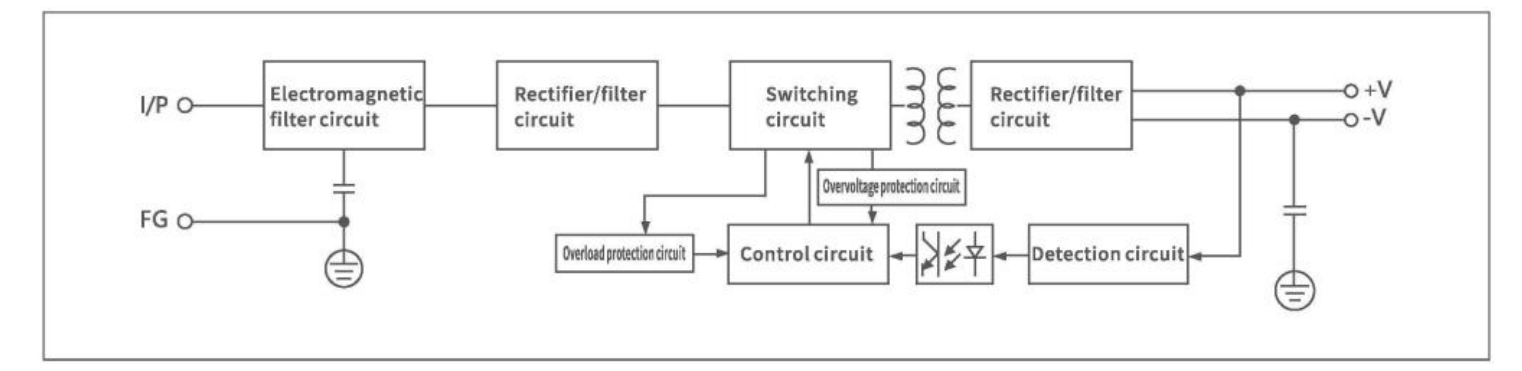

Technical drawings and circuit diagrams
Original excerpts from the technical document. A series diagram may apply to more than one listed variant.
Sourcing Notes
- Use the exact manufacturer part number for RFQ and cross-reference review.
- Review the listed technical parameters before approving any substitution.
- No datasheet is listed on this page, so validate fit against the exact MPN before ordering.
