Source photograph of the CFE-70257 enclosure. Variant ratings are listed in the specification table.
Overview
Specify CFE-70257-R133 when requesting this DIN rail power supply from the CFE-70257 series. The electrical selection is 12 V / 6.25 A; 75 W. Input requirement: 200–500 VAC / 282.8–707 VDC. Supply frequency: 47–63 Hz. Housing: ventilated metal enclosure. The documented cooling method is fanless. Listed body dimensions: 32 × 125 × 97 mm; axis order follows the technical document. Check the channel combination and mechanical fit before preparing the order specification.
Core specification
Part numberCFE-70257-R133
ManufacturerChipFasteners
Series / designationCFE-70257
CategoryPower Supplies & Converters
SubcategoryCFE-70257
AvailabilityAvailability on request
LifecycleInformation on request.
PackageInformation on request.
Lead timeConfirmed in quotation
Technical parameters
Output channels
12 V / 6.25 A
Rated output power
75 W
Input voltage
200–500 VAC / 282.8–707 VDC
Input frequency
47–63 Hz
Dimensions, document order
32 × 125 × 97 mm
DC voltage
12 V
Rated power
75 W
Voltage range
200–500 VAC / 282.8–707 VDC

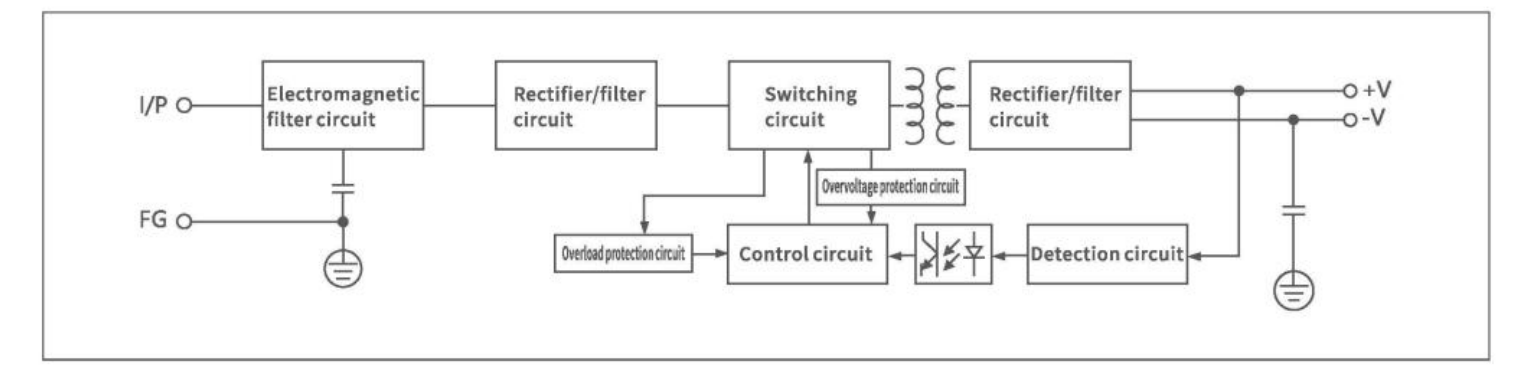

Technical drawings and circuit diagrams
Original excerpts from the technical document. A series diagram may apply to more than one listed variant.
Sourcing Notes
- Use the exact manufacturer part number for RFQ and cross-reference review.
- Review the listed technical parameters before approving any substitution.
- No datasheet is listed on this page, so validate fit against the exact MPN before ordering.
