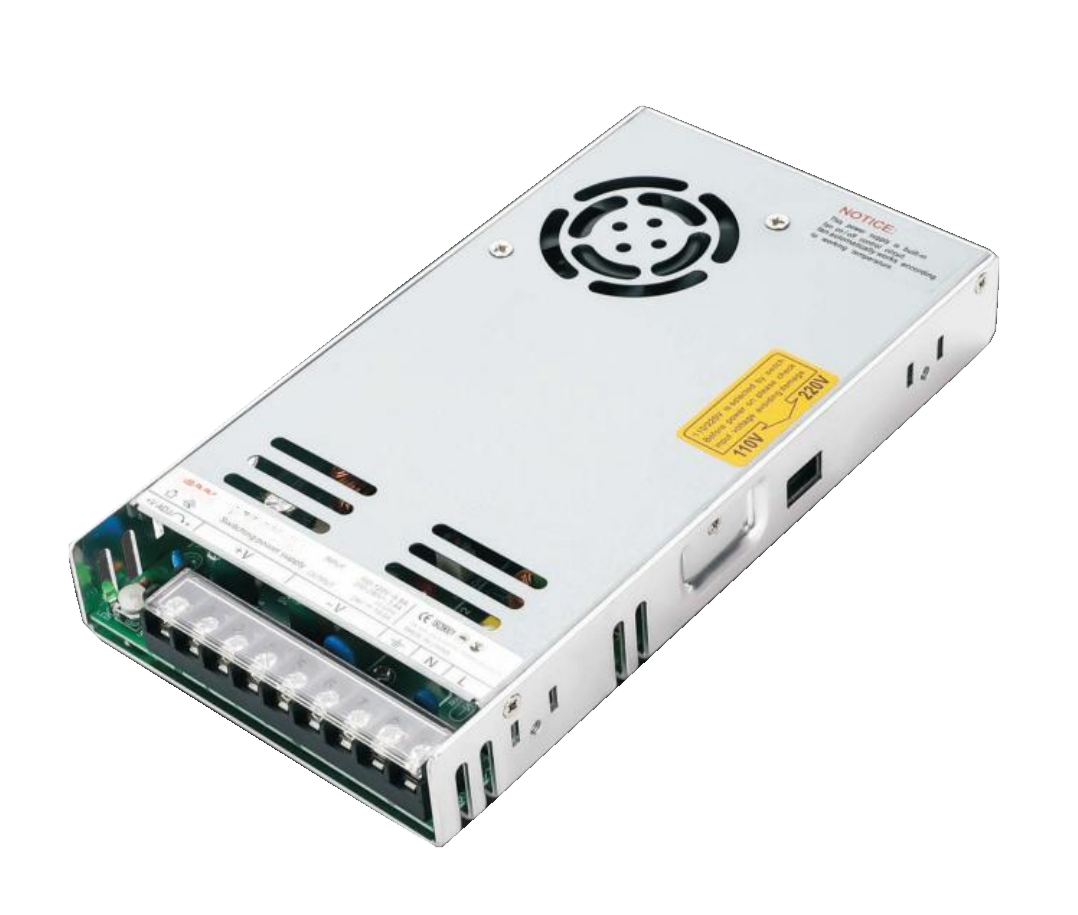

Source photograph of the CFE-70863 enclosure. Variant ratings are listed in the specification table.
Overview
Specify CFE-70863-R530 when requesting this enclosed AC/DC power supply from the CFE-70863 series. The electrical selection is 48 V / 4.4 A; 211.2 W. Input requirement: 90–132 / 180–264 VAC, switch selection / 240–370 VDC. Supply frequency: 47–63 Hz. Housing: ventilated metal enclosure. Cooling details require a configuration-specific check. Listed body dimensions: 215 × 115 × 30 mm; axis order follows the technical document. Check the channel combination and mechanical fit before preparing the order specification.
Core specification
Part numberCFE-70863-R530
ManufacturerChipFasteners
Series / designationCFE-70863
CategoryPower Supplies & Converters
SubcategoryCFE-70863
AvailabilityAvailability on request
LifecycleInformation on request.
PackageInformation on request.
Lead timeConfirmed in quotation
Technical parameters
Output channels
48 V / 4.4 A
Rated output power
211.2 W
Input voltage
90–132 / 180–264 VAC, switch selection / 240–370 VDC
Input frequency
47–63 Hz
Dimensions, document order
215 × 115 × 30 mm
DC voltage
48 V
Rated current
4.4 A
Rated power
211.2 W

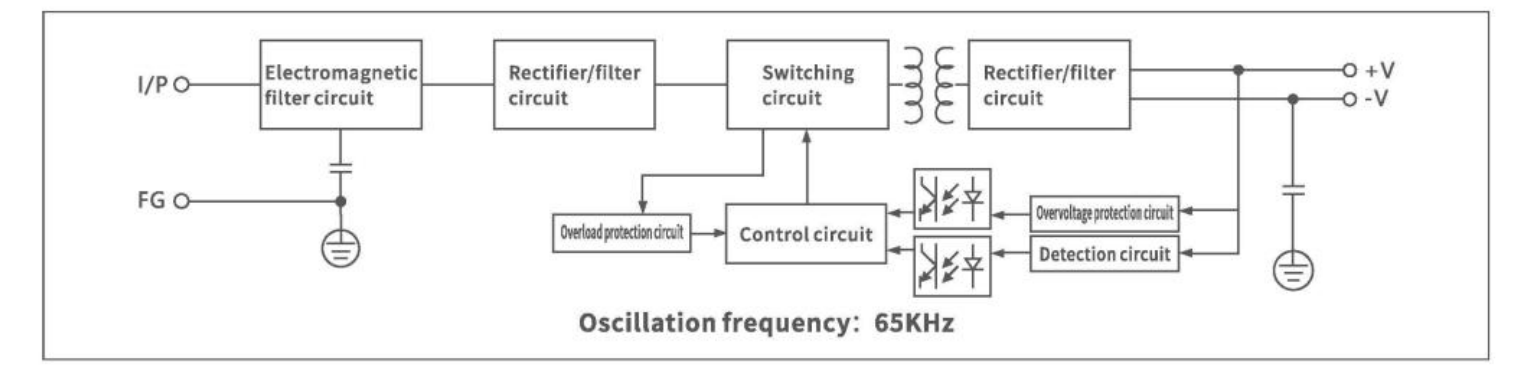

Technical drawings and circuit diagrams
Original excerpts from the technical document. A series diagram may apply to more than one listed variant.
Sourcing Notes
- Use the exact manufacturer part number for RFQ and cross-reference review.
- Review the listed technical parameters before approving any substitution.
- No datasheet is listed on this page, so validate fit against the exact MPN before ordering.
