CFE-72086-R293

ChipFasteners · Power Supplies & Converters / CFE-72086

Availability on request Availability on request Confirmed in quotation Price on request

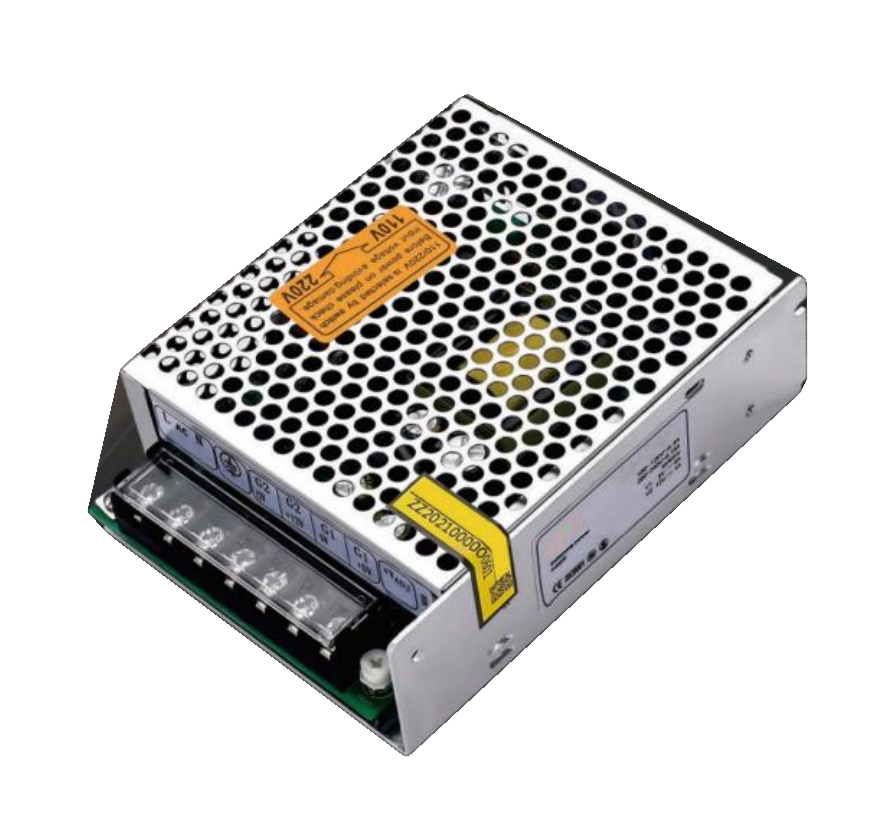

ChipFasteners CFE-72086 enclosure

Source photograph of the CFE-72086 enclosure. Variant ratings are listed in the specification table.

Overview

Specify CFE-72086-R293 when requesting this multiple-output power supply from the CFE-72086 series. The electrical selection is 5 V / 12 A; 24 V / 2.5 A; 120 W. Input requirement: 85–132 / 180–264 VAC / 254–370 VDC. Supply frequency: 47–63 Hz. Housing: ventilated metal enclosure. The documented cooling method is fanless. Specification details — Output adjustment: CH1: ±10%; Typical efficiency: >81% @ 230 VAC / 25 °C; Operating conditions: −10…+50 °C; 20–90% RH. Listed body dimensions: 199 × 110 × 50 mm; axis order follows the technical document. Check the channel combination and mechanical fit before preparing the order specification.

Core specification

Part numberCFE-72086-R293
ManufacturerChipFasteners
Series / designationCFE-72086
SubcategoryCFE-72086
AvailabilityAvailability on request
LifecycleInformation on request.
PackageInformation on request.
Lead timeConfirmed in quotation

Technical parameters

Output channels 5 V + 24 V / 12 A / 2.5 A
Rated output power 120 W
Input voltage 85–132 / 180–264 VAC / 254–370 VDC
Input frequency 47–63 Hz
Dimensions, document order 199 × 110 × 50 mm
Rated current CH1: 12 A / CH2: 2.5 A
Output current range CH1: 0.5–15 A; CH2: 0.1–3.5 A
Rated power 120 W
Output voltage tolerance CH1: ±2%; CH2: ±10%
Output voltage adjustment CH1: ±10%
Load regulation CH1: ±1.5%; CH2: ±3.0%
Line regulation CH1: ±0.5%; CH2: ±1.0%
Voltage range 85–132 / 180–264 VAC / 254–370 VDC
Typical efficiency, rated load >81% @ 230 VAC / 25 °C
Input current <2.2 A @ 110 VAC; <1.1 A @ 220 VAC
Inrush current 18 A @ 110 VAC; 45 A @ 220 VAC
Start / rise / hold timing as specified 2000 / 30 / 20 ms @ 220 VAC; 2000 / 30 / 10 ms @ 115 VAC
Leakage current ≤1 mA @ 240 VAC
Operating temperature / humidity −10…+50 °C; 20–90% RH
Storage temperature / humidity −20…+85 °C; 10–95% RH
Dielectric withstand Input–output: 1.5 kVAC; input–case: 1.5 kVAC; output–case: 0.5 kVAC; 1 minute
Net / gross mass 616.3 / 654.3 g
Ripple measurement conditions 20 MHz bandwidth; 0.1 µF and 47 µF capacitors in parallel at the output terminals

Technical drawings and circuit diagrams

Original excerpts from the technical document. A series diagram may apply to more than one listed variant.

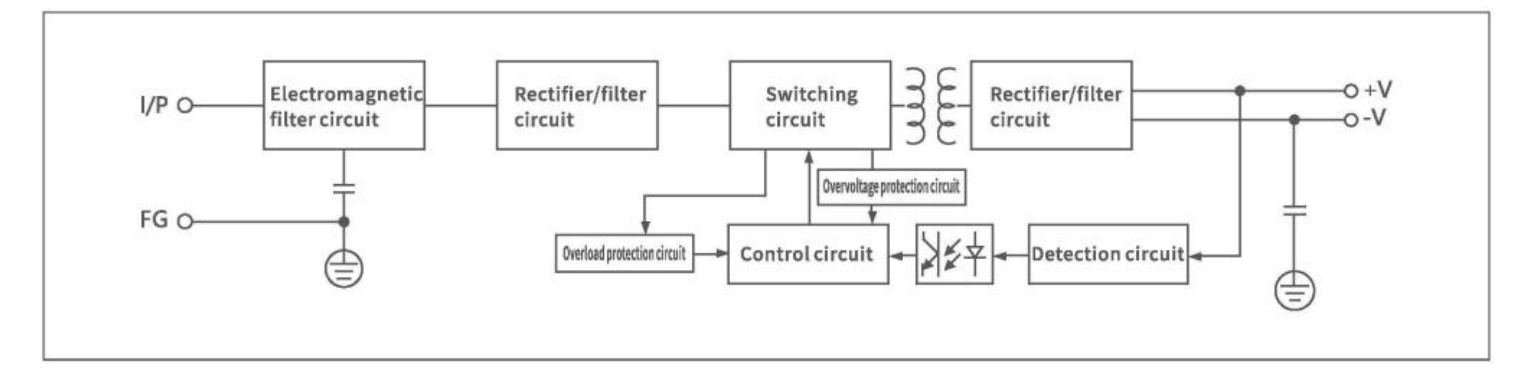

CFE-72086 — Functional block diagram
CFE-72086 — Functional block diagram

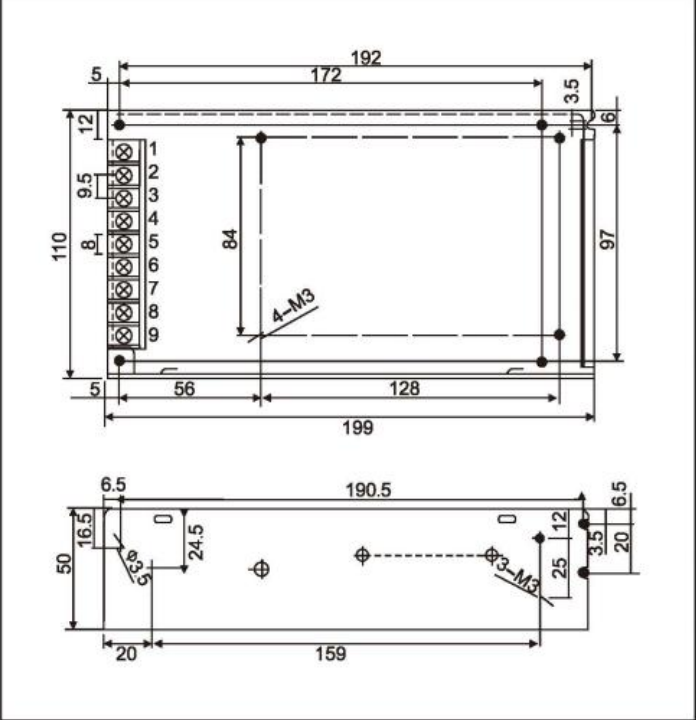

CFE-72086 — Mechanical drawing
CFE-72086 — Mechanical drawing

Sourcing Notes

  • Use the exact manufacturer part number for RFQ and cross-reference review.
  • Review the listed technical parameters before approving any substitution.
  • No datasheet is listed on this page, so validate fit against the exact MPN before ordering.
