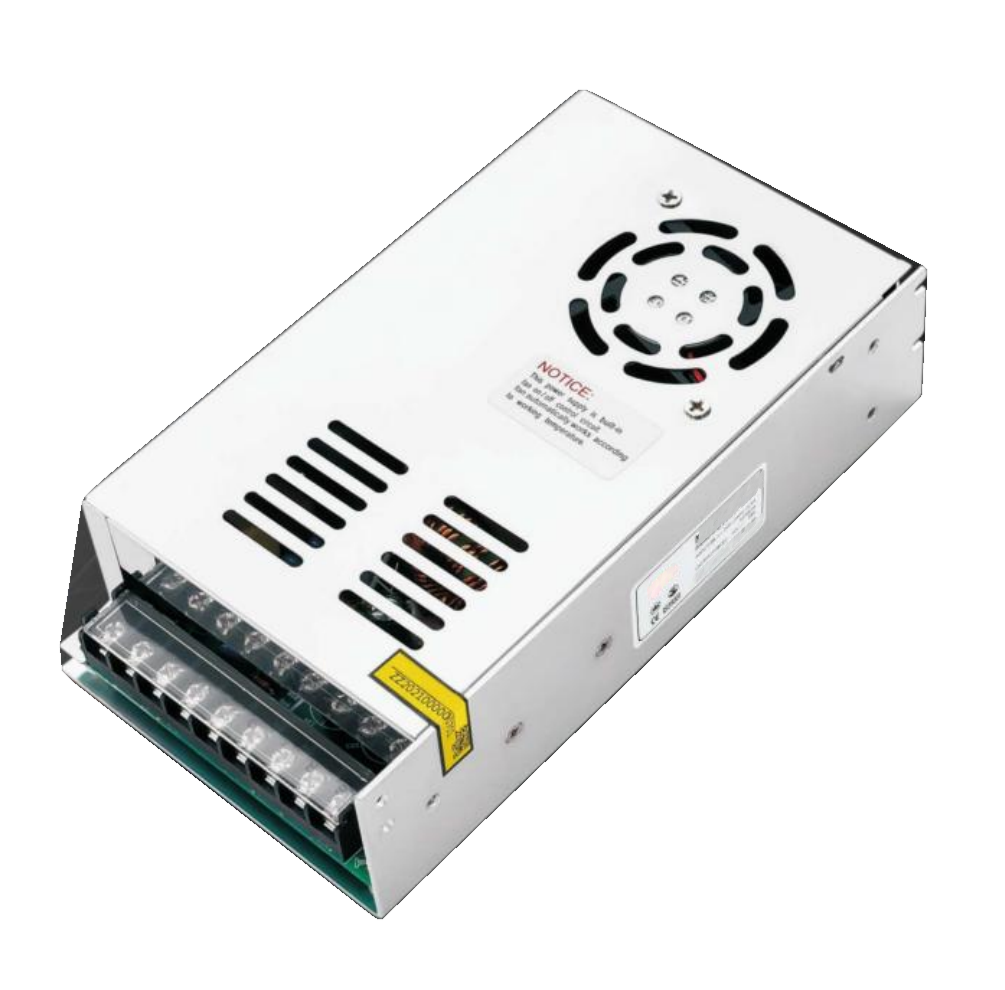

Source photograph of the CFE-74784 enclosure. Variant ratings are listed in the specification table.
Overview
Specify CFE-74784-R565 when requesting this enclosed AC/DC power supply from the CFE-74784 series. The electrical selection is 24 V / 14.5 A; 350 W. Input requirement: 90–132 / 180–264 VAC / 254–370 VDC. Supply frequency: 47–63 Hz. Housing: ventilated metal enclosure. Fan cooling is specified in the family overview. Listed body dimensions: 159 × 98 × 38 mm; axis order follows the technical document. Check the channel combination and mechanical fit before preparing the order specification.
Core specification
Part numberCFE-74784-R565
ManufacturerChipFasteners
Series / designationCFE-74784
CategoryPower Supplies & Converters
SubcategoryCFE-74784
AvailabilityAvailability on request
LifecycleInformation on request.
PackageInformation on request.
Lead timeConfirmed in quotation
Technical parameters
Output channels
24 V / 14.5 A
Rated output power
350 W
Input voltage
90–132 / 180–264 VAC / 254–370 VDC
Input frequency
47–63 Hz
Dimensions, document order
159 × 98 × 38 mm
DC voltage
24 V

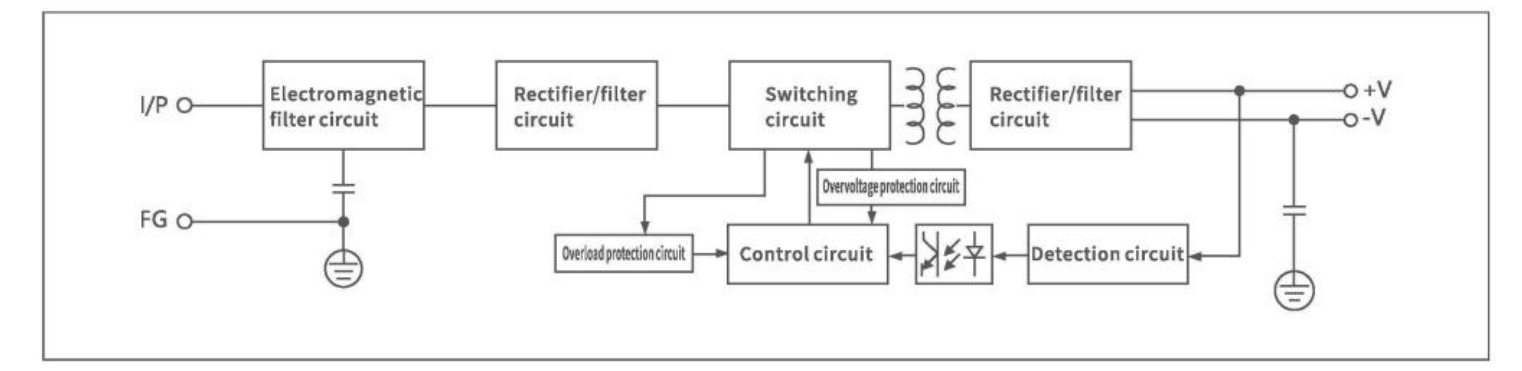

Technical drawings and circuit diagrams
Original excerpts from the technical document. A series diagram may apply to more than one listed variant.
Sourcing Notes
- Use the exact manufacturer part number for RFQ and cross-reference review.
- Review the listed technical parameters before approving any substitution.
- No datasheet is listed on this page, so validate fit against the exact MPN before ordering.
