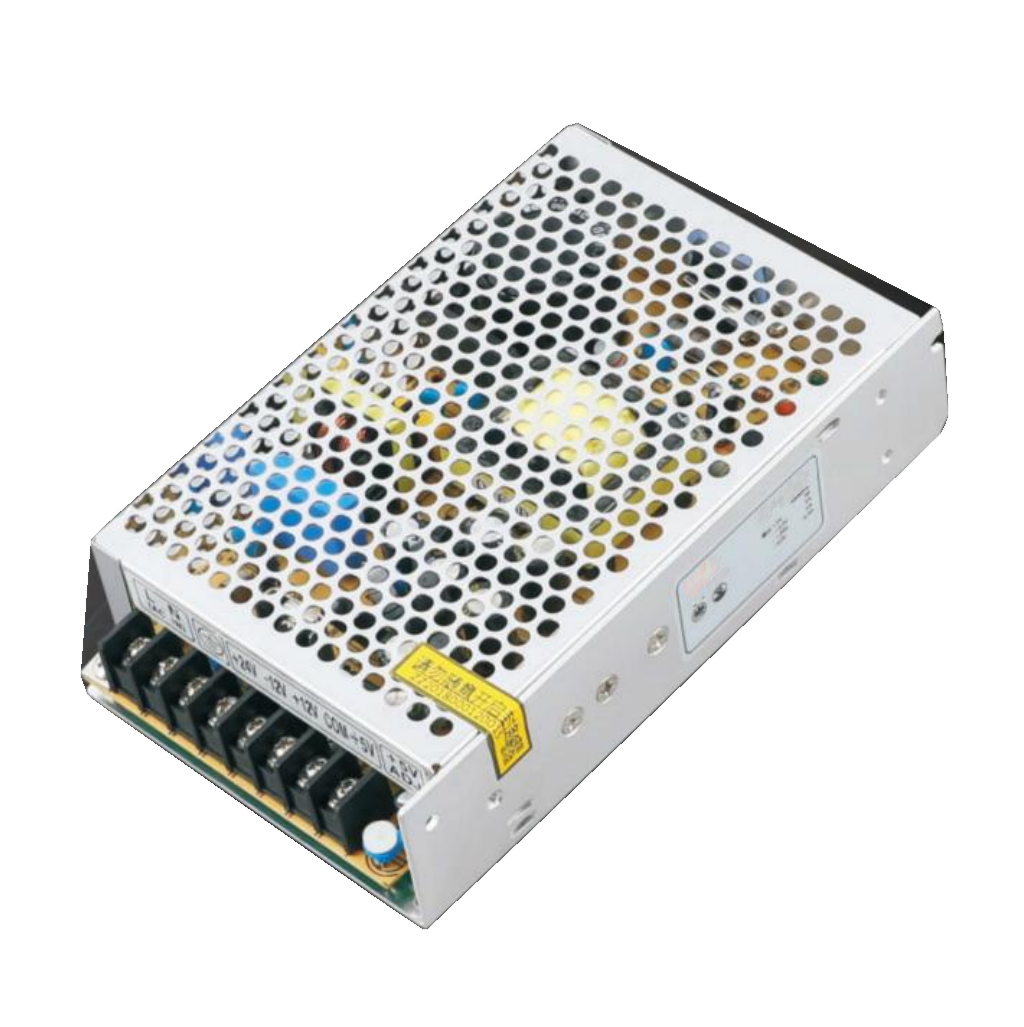

Source photograph of the CFE-78610 enclosure. Variant ratings are listed in the specification table.
Overview
Specify CFE-78610-R610 when requesting this multiple-output power supply from the CFE-78610 series. The electrical selection is 5 V / 8 A; 12 V / 2.5 A; 24 V / 2 A; -12 V / 0.5 A; 124 W. Input requirement: 85–132 / 180–264 VAC / 254–370 VDC. Supply frequency: 47–63 Hz. Housing: ventilated metal enclosure. The documented cooling method is fanless. Listed body dimensions: 199 × 110 × 50 mm; axis order follows the technical document. Check the channel combination and mechanical fit before preparing the order specification.
Core specification
Part numberCFE-78610-R610
ManufacturerChipFasteners
Series / designationCFE-78610
CategoryPower Supplies & Converters
SubcategoryCFE-78610
AvailabilityAvailability on request
LifecycleInformation on request.
PackageInformation on request.
Lead timeConfirmed in quotation
Technical parameters
Output channels
5 V + 12 V + 24 V + -12 V / 8 A / 2.5 A / 2 A / 0.5 A
Rated output power
124 W
Input voltage
85–132 / 180–264 VAC / 254–370 VDC
Input frequency
47–63 Hz
Dimensions, document order
199 × 110 × 50 mm
Dc voltage
CH1: 5 V / CH2: 12 V / CH3: 24 V / CH4: -12 V
Rated current
CH1: 8 A / CH2: 2.5 A / CH3: 2 A / CH4: 0.5 A
Rated power
124 W
Voltage range
85–132 / 180–264 VAC / 254–370 VDC

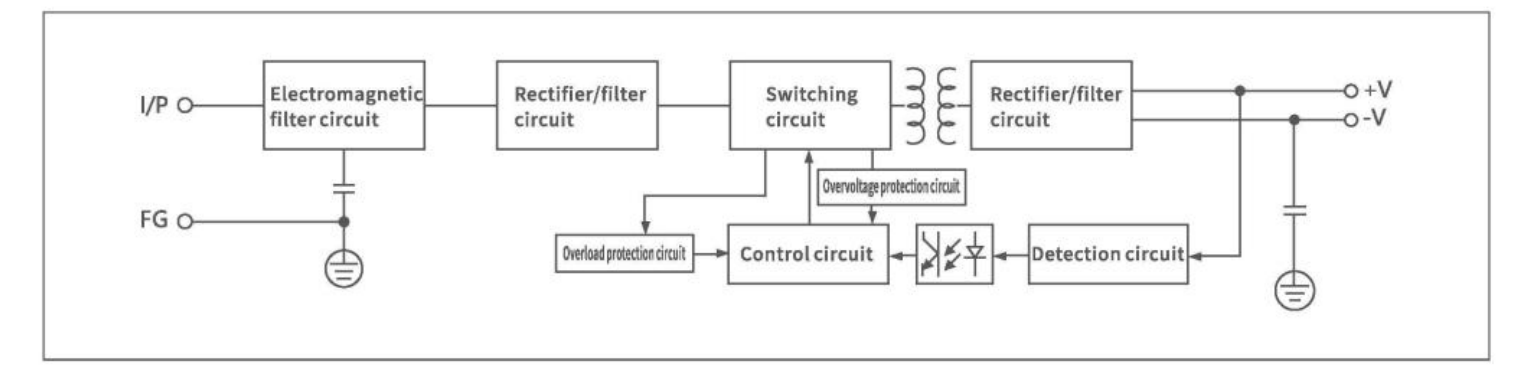

Technical drawings and circuit diagrams
Original excerpts from the technical document. A series diagram may apply to more than one listed variant.
Sourcing Notes
- Use the exact manufacturer part number for RFQ and cross-reference review.
- Review the listed technical parameters before approving any substitution.
- No datasheet is listed on this page, so validate fit against the exact MPN before ordering.
