CFE-89347-R196

ChipFasteners · Power Supplies & Converters / CFE-89347

Availability on request Availability on request Confirmed in quotation Price on request
ChipFasteners CFE-89347 enclosure

Source photograph of the CFE-89347 enclosure. Variant ratings are listed in the specification table.

Overview

Specify CFE-89347-R196 when requesting this DIN rail power supply from the CFE-89347 series. The electrical selection is 15 V / 9.5 A; 142.5 W; at 230 VAC input. Input requirement: 85–264 VAC (277 VAC operational) / 120–370 VDC (390 VDC operational). Supply frequency: 47–63 Hz. Housing: insulating housing. Cooling details require a configuration-specific check. Listed body dimensions: 105 × 54.5 × 90 mm; axis order follows the technical document. Check the channel combination and mechanical fit before preparing the order specification. Ordering check: output current and power differ between 115 VAC and 230 VAC operation. The headline values use the 230 VAC condition.

Core specification

Part numberCFE-89347-R196
ManufacturerChipFasteners
Series / designationCFE-89347
SubcategoryCFE-89347
AvailabilityAvailability on request
LifecycleInformation on request.
PackageInformation on request.
Lead timeConfirmed in quotation

Technical parameters

Output channels 15 V / 9.5 A
Rated output power @ 230 VAC 142.5 W
Input voltage 85–264 VAC (277 VAC operational) / 120–370 VDC (390 VDC operational)
Input frequency 47–63 Hz
Dimensions, document order 105 × 54.5 × 90 mm
Output current by input voltage 8.55 A @ 115 VAC; 9.5 A @ 230 VAC
Output power by input voltage 128.3 W @ 115 VAC; 142.5 W @ 230 VAC
Ripple & noise (max.) 120 mVp-p
Voltage adj. Range 13.5–18 V
Voltage tolerance ±1%
Line regulation ±1%
Load regulation ±1%
Set up, rise time 500 / 60 ms @ 230 VAC; 500 / 60 ms @ 115 VAC, full load
Typical hold-up time 0 ms @ 230 VAC; 12 ms @ 115 VAC, full load
Voltage range 85–264 VAC (277 VAC operational) / 120–370 VDC (390 VDC operational)
Efficiency (typ.) 89.5%
Ac current (typ.) 3 A @ 115 VAC; 1.6 A @ 230 VAC
Inrush current (typ.) Cold start: 35 A @ 115 VAC; 70 A @ 230 VAC
Over voltage 18.8–22.5 V; restart required
Working temp. −30…+70 °C; subject to derating
Working humidity 20–90% RH, non-condensing
Storage temp., humidity −40…+85 °C; 10–95% RH, non-condensing
Temp. Coefficient ±0.03%/°C at 0–45 °C
Operating altitude 2000 m
Dielectric withstand Input–output: 4 kVAC
Isolation resistance Input–output: 100 MΩ at 500 VDC / 25 °C / 70% RH
Dimension 105 × 54.5 × 90 mm
Catalog packing specification 0.31 kg; 32 pcs / 11 kg / 1.0 CUFT
Rating conditions Current and power at 230 VAC input; separate 115 VAC ratings apply.

Technical drawings and circuit diagrams

Original excerpts from the technical document. A series diagram may apply to more than one listed variant.

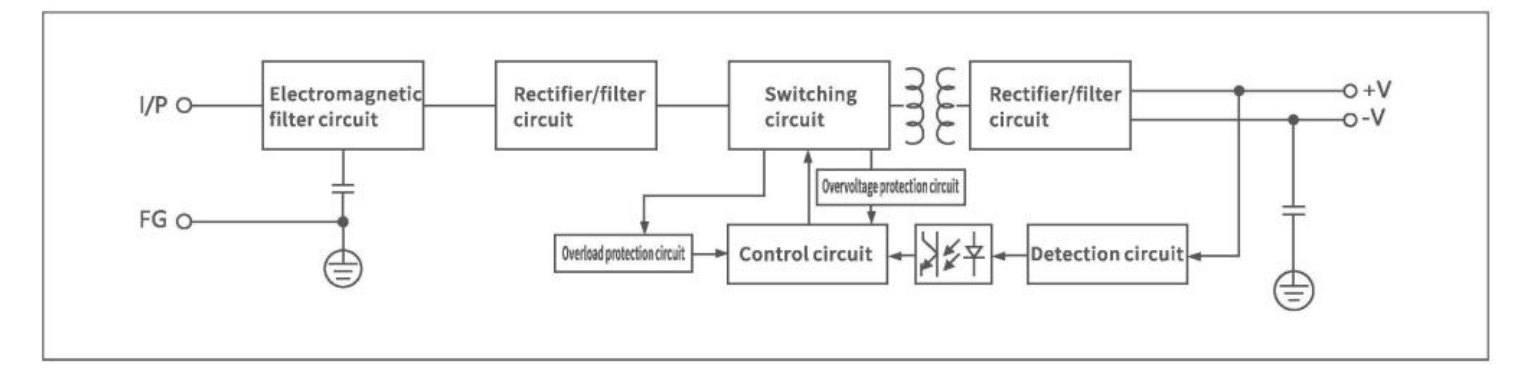

CFE-89347 — Functional block diagram
CFE-89347 — Functional block diagram
