Source photograph of the CFE-92590 enclosure. Variant ratings are listed in the specification table.
Overview
Specify CFE-92590-R515 when requesting this DIN rail power supply from the CFE-92590 series. The electrical selection is 12 V / 3.5 A; 42 W. Input requirement: 85–264 VAC / 120–370 VDC. Supply frequency: 47–63 Hz. Housing: insulating housing. The documented cooling method is fanless. Listed body dimensions: 78 × 93 × 56 mm; axis order follows the technical document. Check the channel combination and mechanical fit before preparing the order specification.
Core specification
Part numberCFE-92590-R515
ManufacturerChipFasteners
Series / designationCFE-92590
CategoryPower Supplies & Converters
SubcategoryCFE-92590
AvailabilityAvailability on request
LifecycleInformation on request.
PackageInformation on request.
Lead timeConfirmed in quotation
Technical parameters
Output channels
12 V / 3.5 A
Rated output power
42 W
Input voltage
85–264 VAC / 120–370 VDC
Input frequency
47–63 Hz
Dimensions, document order
78 × 93 × 56 mm
DC voltage
12 V

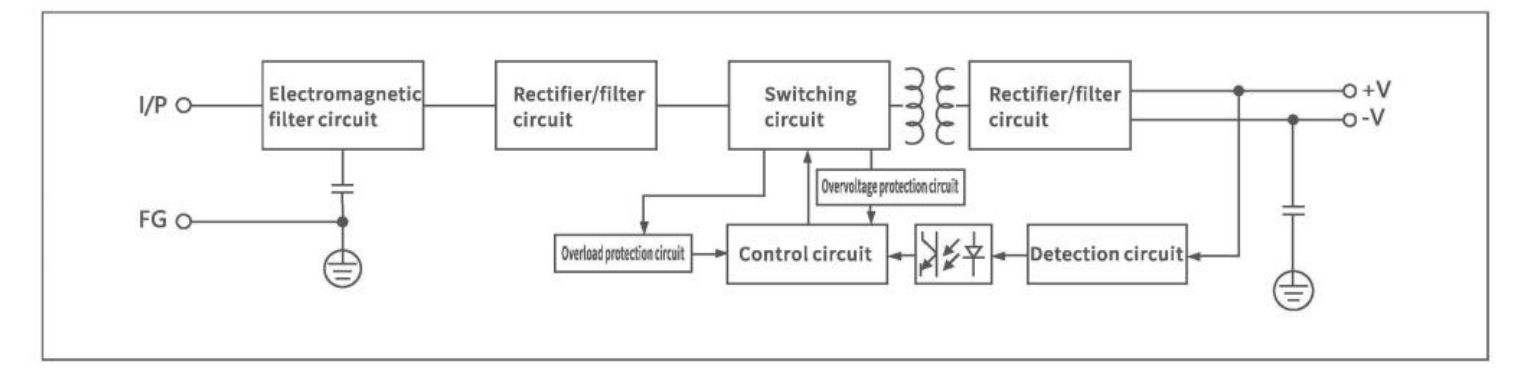

Technical drawings and circuit diagrams
Original excerpts from the technical document. A series diagram may apply to more than one listed variant.
Sourcing Notes
- Use the exact manufacturer part number for RFQ and cross-reference review.
- Review the listed technical parameters before approving any substitution.
- No datasheet is listed on this page, so validate fit against the exact MPN before ordering.
