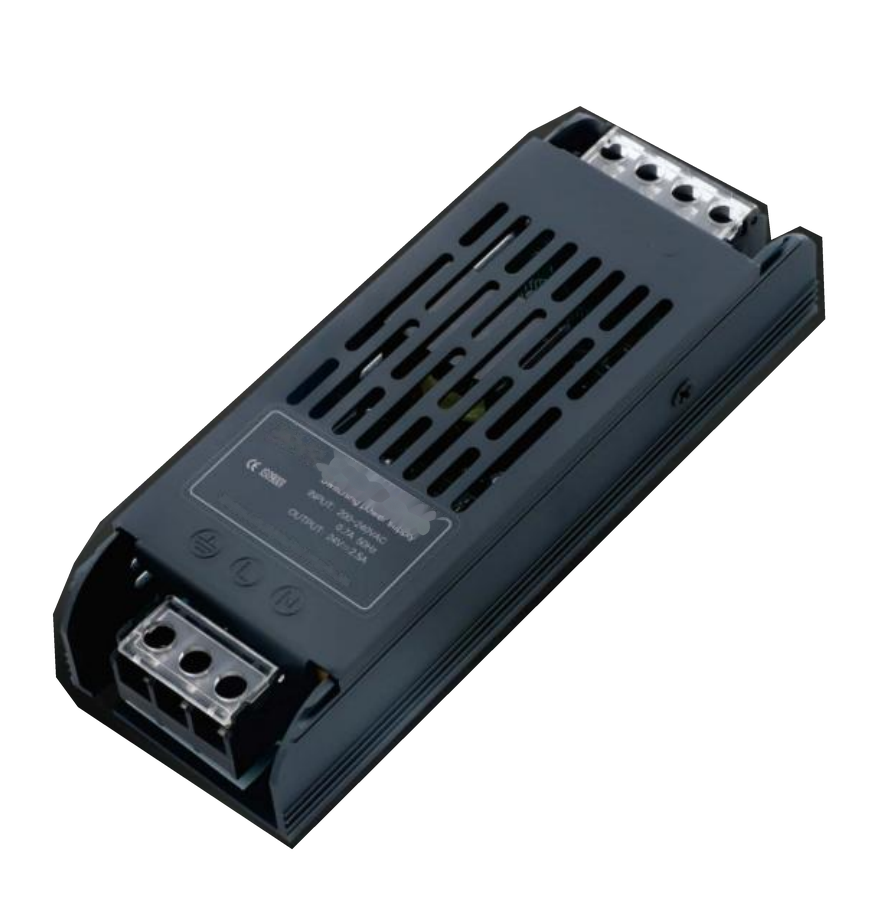

Source photograph of the CFE-92871 enclosure. Variant ratings are listed in the specification table.
Overview
Specify CFE-92871-R174 when requesting this LED power supply from the CFE-92871 series. The electrical selection is 12 V / 5 A; 60 W. Input requirement: 200–240 VAC. Supply frequency: 50/60 Hz. Housing: ventilated metal enclosure. The documented cooling method is fanless. Listed body dimensions: 141 × 50 × 29 mm; axis order follows the technical document. Check the channel combination and mechanical fit before preparing the order specification.
Core specification
Part numberCFE-92871-R174
ManufacturerChipFasteners
Series / designationCFE-92871
CategoryPower Supplies & Converters
SubcategoryCFE-92871
AvailabilityAvailability on request
LifecycleInformation on request.
PackageInformation on request.
Lead timeConfirmed in quotation
Technical parameters
Output channels
12 V / 5 A
Rated output power
60 W
Input voltage
200–240 VAC
Input frequency
50/60 Hz
Dimensions, document order
141 × 50 × 29 mm
Min load
0 A
Peak power
60 W
Power adjustment rate
±3%
Load regulation
±5%
Efficiency
≥86% @ 220 VAC, full load
Max ripple/noise
350 mVp-p
AC leakage current
≤3.5 mA @ 240 VAC
Overshoot protection
Automatic recovery after overcurrent fault removal
Operational requirements
−25…+40 °C, full load
Weight
173 g
Ripple measurement conditions
20 MHz bandwidth; 0.1 µF and 47 µF capacitors in parallel at the output terminals

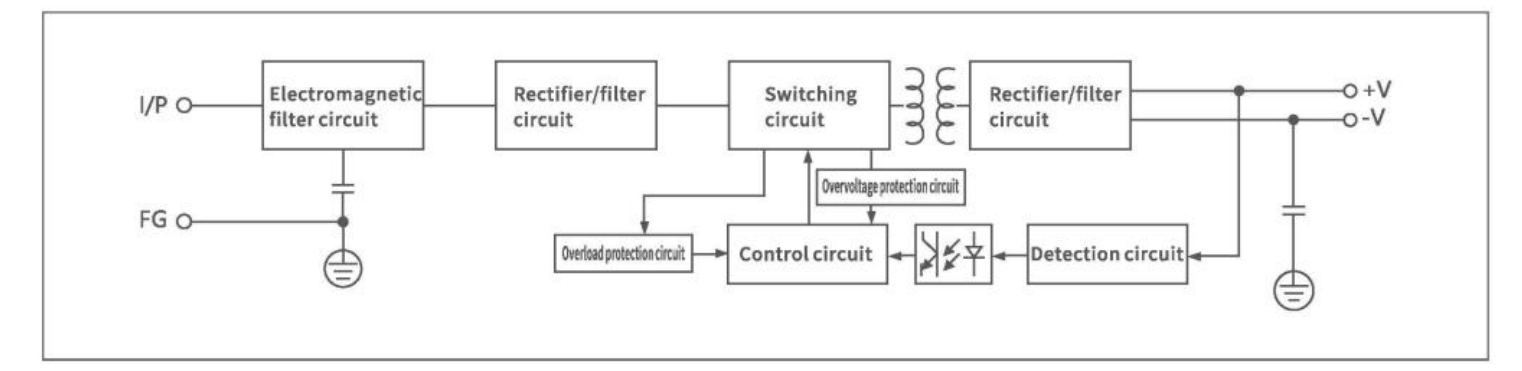

Technical drawings and circuit diagrams
Original excerpts from the technical document. A series diagram may apply to more than one listed variant.
Sourcing Notes
- Use the exact manufacturer part number for RFQ and cross-reference review.
- Review the listed technical parameters before approving any substitution.
- No datasheet is listed on this page, so validate fit against the exact MPN before ordering.
