Source photograph of the CFE-96065 enclosure. Variant ratings are listed in the specification table.
Overview
Specify CFE-96065-R174 when requesting this DIN rail power supply from the CFE-96065 series. The electrical selection is 5 V / 3 A; 15 W. Input requirement: 85–264 VAC (277 VAC operational) / 120–370 VDC (390 VDC operational). Supply frequency: 47–63 Hz. Housing: insulating housing. Cooling details require a configuration-specific check. Listed body dimensions: 35 × 54.5 × 90 mm; axis order follows the technical document. Check the channel combination and mechanical fit before preparing the order specification.
Core specification
Part numberCFE-96065-R174
ManufacturerChipFasteners
Series / designationCFE-96065
CategoryPower Supplies & Converters
SubcategoryCFE-96065
AvailabilityAvailability on request
LifecycleInformation on request.
PackageInformation on request.
Lead timeConfirmed in quotation
Technical parameters
Output channels
5 V / 3 A
Rated output power
15 W
Input voltage
85–264 VAC (277 VAC operational) / 120–370 VDC (390 VDC operational)
Input frequency
47–63 Hz
Dimensions, document order
35 × 54.5 × 90 mm
DC voltage
5 V
Rated current
3 A
Rated power
15 W
Voltage range
85–264 VAC (277 VAC operational) / 120–370 VDC (390 VDC operational)
Frequency range
47–63 Hz
Dimension
35 × 54.5 × 90 mm

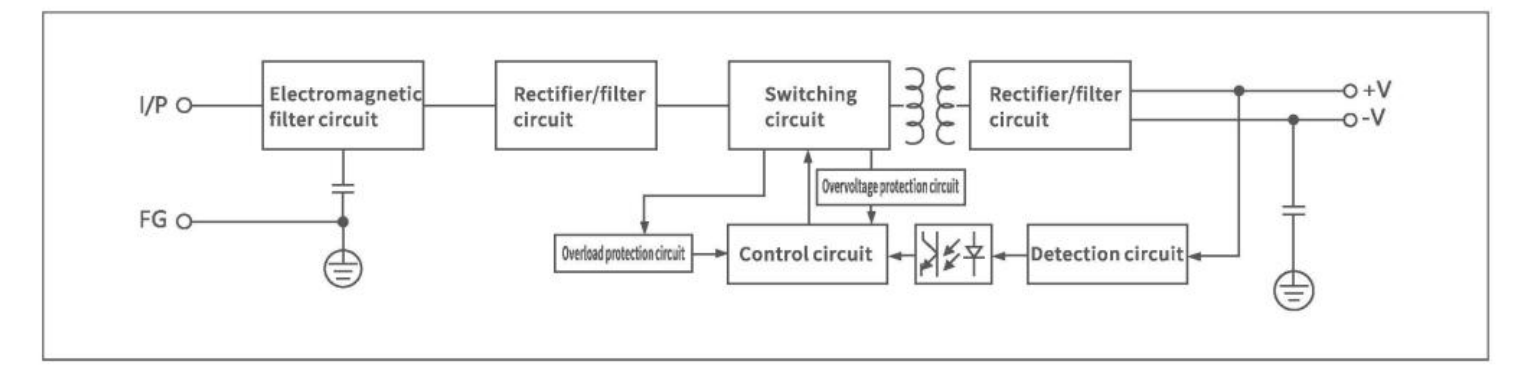

Technical drawings and circuit diagrams
Original excerpts from the technical document. A series diagram may apply to more than one listed variant.
Sourcing Notes
- Use the exact manufacturer part number for RFQ and cross-reference review.
- Review the listed technical parameters before approving any substitution.
- No datasheet is listed on this page, so validate fit against the exact MPN before ordering.
